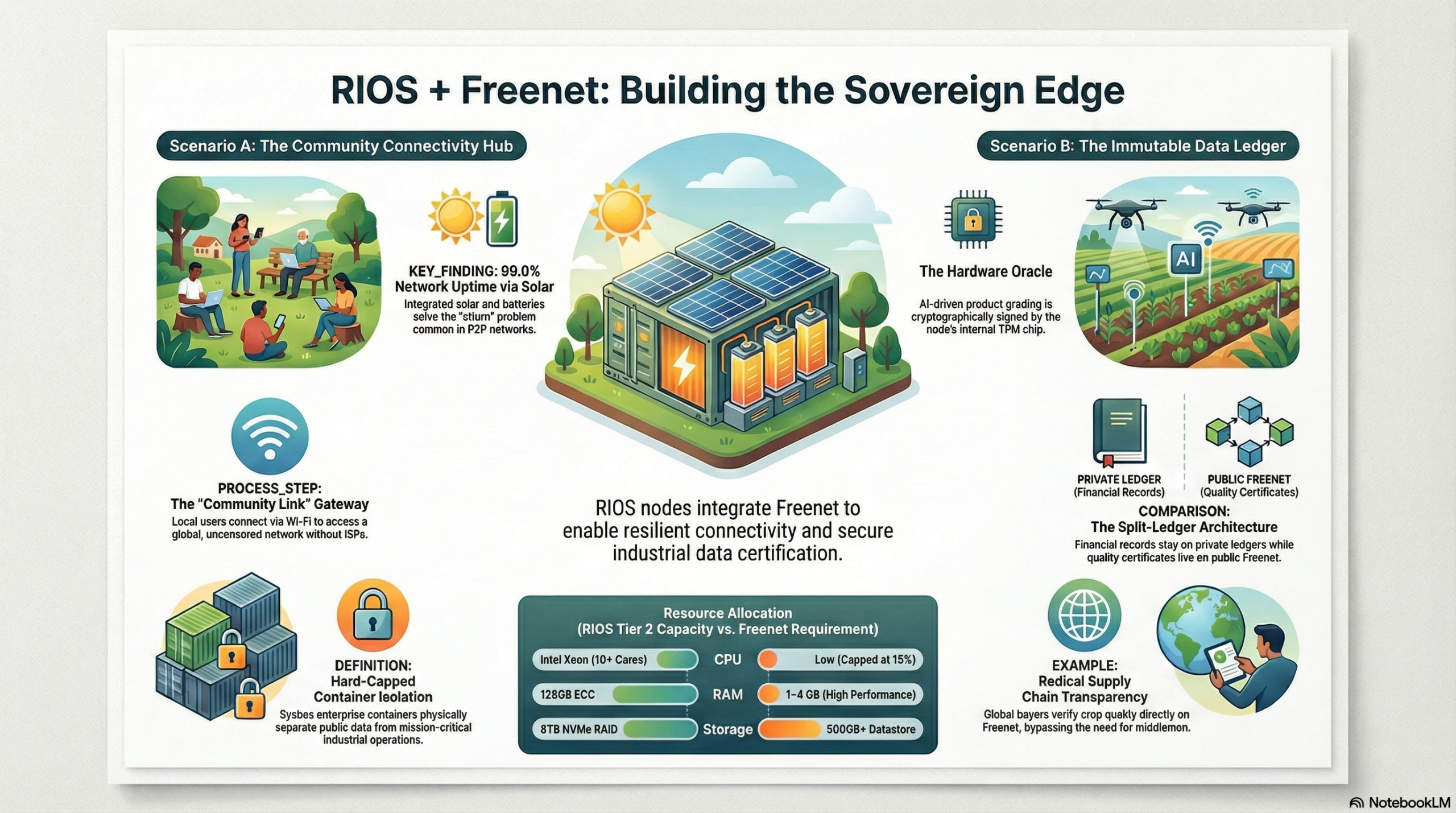

This document defines the high-stakes orchestration required to activate the DeReticular RIOS Tier 2 “Anchor” node. As a Senior Systems Architect, I demand a zero-failure approach to “Sovereign Infrastructure.” This blueprint transforms an industrial utility into a civilization-anchoring asset by establishing a hardened, dual-use environment where regulated financial settlement and anonymous communication exist in a state of absolute, hardware-enforced isolation.
1. Hardware Integration and Physical Resource Partitioning
In remote deployments where the rule of law is often replaced by environmental or political volatility, relying on software-defined security is a strategic failure. Physical hardware isolation is the only acceptable defense against cross-contamination. In a “Sovereign Edge” node, we do not merely separate data; we hermetically seal the industrial financial stack from the public-facing “Sovereign Net.”
The integration of the Samsung 990 PRO (STR-01) and YubiKey 5 Series (SEC-01) is the bedrock of this architecture. The STR-01 serves as a dedicated physical silo for the Freenet/Hyphanet encrypted store, ensuring that the heavy write-load and peer-to-peer (P2P) traffic of the global swarm cannot touch the primary 8TB financial datastore. Meanwhile, the SEC-01 keys establish a physical root of access for the “Secure Zone,” ensuring that no digital-only intrusion can manipulate the HempGrade AI or financial ledgers.
Hardware Integration Kit: Tier 2 Anchor Specifications
| Item ID | Component Name | Strategic Rationale |
| NET-01 | Ubiquiti UniFi AC Mesh Pro | Broadcasts the “Community Link” Wi-Fi; an IP67-rated bridge between the local “Freedom Hub” and the global decentralized swarm. |
| SEC-01 | YubiKey 5 Series (FIPS) | Provides the mandatory physical 2FA required to access the Secure Zone (HempGrade), establishing a hardware-level perimeter. |
| STR-01 | Samsung 990 PRO 2TB | High-endurance NVMe dedicated to the untrusted public store, physically isolating P2P volatility from industrial logs. |
| CAB-01 | Cat6 Shielded Cable | UV-resistant, outdoor-rated connectivity to maintain signal integrity between the server core and the external broadcast hardware. |
| LBL-01 | Tamper-Evident Seals | Serialized holographic security for the chassis and camera housing; creates a verifiable audit trail for unmonitored deployments. |
By establishing this physical foundation, we create the necessary conditions for the BIOS to serve as the node’s immutable genesis.
——————————————————————————–
2. BIOS Security Initialization and Hardware Attestation
The BIOS is not a mere configuration layer; it is the “Immutable Genesis” of the node’s soul. This Root of Trust must be established before the first bit of the OS is executed. In a sovereign environment, the hardware must function as a “Hardware Oracle”—a device capable of providing cryptographic proof of its own physical and logical state.
Technicians must enable VT-d (Virtualization Technology for Directed I/O) and IOMMU to allow for “hard” hardware passthrough. These settings are the prerequisite for containerized isolation, preventing any memory-space leakage between the public network and the financial core. Furthermore, TPM 2.0 provisioning using the DeReticular Master Key is mandatory. This process binds the node’s identity to its silicon, enabling the server to sign data attestations that are physically impossible to forge.
In rural, unmonitored zones, physical integrity is maintained through a “Genesis Image” protocol. Once the LBL-01 holographic seals are applied to the chassis and camera housing, a high-resolution photograph is captured and uploaded as a signed contract to the Freenet store. This provides a permanent, immutable record of the node’s “Factory-Fresh” state, allowing any future auditor to detect even microscopic physical tampering via the DeReticular dashboard.
With hardware trust finalized, the node can safely initialize the software-defined isolation stack.
——————————————————————————–
3. Containerized Isolation and Logical Network Partitioning
To satisfy the “separation of concerns” required by regulators, we implement “The Air-Gap in the Box.” We do not allow different trust levels to share the same OS kernel. Using Sysbox Enterprise, we deploy a Sovereign Container Stack that utilizes hard-capping and virtual networking to silo the public and private spheres.
The stack distinguishes between the two branches of the decentralized web:
- Container A [SECURE_ZONE]: Hosts the HempGrade AI (YOLOv8) and financial ledgers. This container has Priority 1 access to the GPU and CPU.
- Container B [PUBLIC_ZONE]: Runs Hyphanet (the classic Java-based client) to provide the “FProxy” interface for static browsing, alongside Freenet/Locutus (the new Rust-based kernel) to handle dynamic WebAssembly (Wasm) contracts and the River chat app.
Network traffic is logically annihilated across boundaries. VLAN 10 (MANAGEMENT) carries the Starlink uplink and HempGrade data, while VLAN 20 (GUEST_PUBLIC) isolates all outdoor AP and P2P traffic. A strict “DENY ALL” firewall rule ensures that no packet from the public guest network can ever reach the industrial core.
To guarantee that the “Sovereign Net” remains a background utility, we implement the following resource caps:
- CPU Utilization: Hard-capped at 15% (2 cores) for all public-facing services.
- RAM Allocation: 8GB is strictly allocated for Freenet. This is not a limit, but a performance requirement for maintaining the high-speed routing table and content caching necessary for a stable P2P supernode.
- vETH Separation: Public traffic is routed through a virtual interface that is logically isolated from the node’s management traffic.
This logical architecture ensures the “Sovereign Net” can never impede mission-critical industrial grading or battery management.
——————————————————————————–
4. Field Activation and “Community Link” Orchestration
Field activation marks the transition from a passive utility box to a local “Freedom Hub.” This phase is as much about social engineering as it is technical deployment: by providing the community with its only link to the outside world, we create “physical security through community trust.” A farmer will defend the node from vandalism because it is their primary tool for communication and news.
The Scenario A (Infrastructure) activation begins with the “Bootstrap” sequence. Once the Starlink or 4G uplink is verified, the technician seeds the node using the pre-loaded seednodes.fref file. This connects the node to the global swarm. A 30-minute stabilization period is mandatory to allow the node to populate its routing table and claim its place in the global keyspace.
Once stable, the SSID: RIOS_Free_Link is activated. The browser-based FProxy portal allows local users to access the decentralized web, medical wikis, and the River messaging app without installing specialized software. This “clientless” access is critical for adoption in rural “data deserts.”
QoS Verification Matrix
The node must pass the following criteria to ensure industrial performance is never compromised by public usage:
| Test Event | Concurrent Activity | Pass/Fail Criteria |
| Heavy P2P Swarm Peak | HempGrade AI Inference | GPU-based grading must maintain zero frame drops and 100% inference speed. |
| Massive Freenet Download | Financial Database Sync | HempGrade sync (Port 443) must complete with zero latency spikes; P2P traffic must be throttled to idle capacity. |
| Community Uplink Surge | BMS (Battery Management) | Critical system telemetry must maintain Priority 1 routing over all guest traffic. |
Initial stability allows the node to mature into its final role: a Hardware Oracle for the “Split-Ledger” economy.
——————————————————————————–
5. Advanced Data Interoperability: The “Split-Ledger” Activation
The “Split-Ledger Architecture” is the ultimate evolution of the RIOS node. It decouples regulated financial settlement from immutable product certification. While the money follows the state, the truth of the physical product resides on an unstoppable decentralized network.
Implementation centers on the Publisher Bridge middleware. This service monitors the secure /mnt/secure_finance/ logs for grading events. When the HempGrade AI completes a scan, the Bridge:
- Strips all Personally Identifiable Information (PII) to satisfy GDPR/KYC blind-hashing requirements.
- Hashes the remaining data (BatchID, Weight, Grade).
- Signs the hash using the TPM-bound Ed25519 keys—ensuring the signature is physically unique to that specific node.
By leveraging the Locutus/Freenet daemon and Wasm contracts, the node creates a “Digital Twin” of the commodity. This twin utilizes CRDTs (Conflict-free Replicated Data Types) to allow for multi-party updates and automatic merging, while Small World Routing ensures the data is retrievable globally in seconds.
The final verification workflow is the “Trustless Commodity” test. External auditors query the Freenet Key—which is embedded in the private Hyperledger/R3 Corda metadata—to retrieve the public certificate. If the cryptographic signature matches the Node Identity Key, the commodity is verified.
This “Sovereignty Appliance” model transforms hardware from a cost center into a civilization-anchoring asset. It protects a community’s right to trade and speak as fiercely as it protects their physical harvest, etching their productivity into an uncensorable, global record.
